贷款用途与百度百科/Purpose and introduction：

NQGF型西林瓶粉针洗烘分开包装轧盖标贴纸三级联动线 由QCL一系列作品落地式高周波波洗瓶机、AQMR隧洞式内重复重复消毒真空烘箱、NQFGX一系列作品加工中心丝杆粉剂分开包装机、NQ-50轧盖机、NQWTB-120标贴纸发电机成，也可单机手游的使用。比较合适于7-25ml規格的西林瓶粉针的加工。能已完成自动喷淋系统灌水、高周波波粗洗、瓶壁上水冲干净、瓶开口处累计再次重复水冲干净、一场吹气、一场新鲜度水冲干净、累计再次吹气、瓶壁上吹气、除垢、升温、烘干设备消毒去热原、急冷、分开包装、加塞、轧盖、标贴纸等二十几个道工艺。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特别/characteristic：

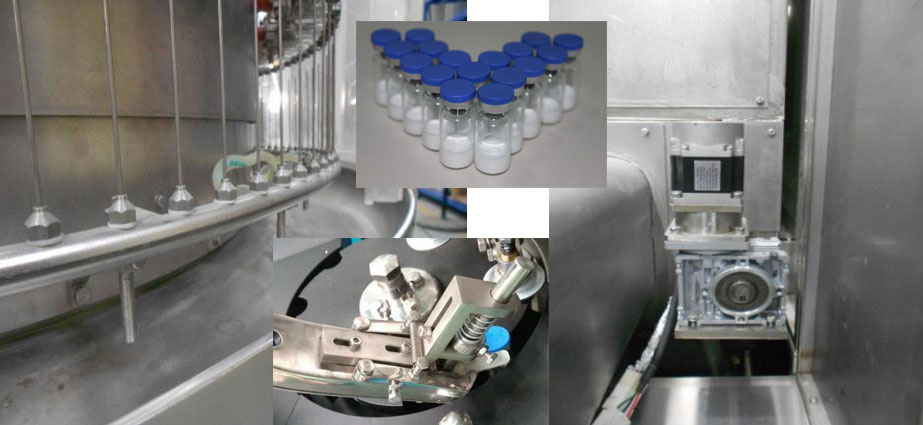

◆洗瓶机用于物理手夹瓶，应用多种类标准的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶用到雾气喷针回转监视插进措施，家电清洗成效好，节俭能源资源。并安装有针架防发抖提升装置，从而提高喷针插进玻璃瓶的最准度，削减断针表现有；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部热气导压管、喷针完成独立自主分手，预防了交叉的情况被污染，按照GMP原则的要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前安装缓冲器块，有维护丝杠，以减少碎瓶用途；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶用于整个进口清关搜集带，接入拨瓶块推送西林瓶，程序运行安全安全可靠；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆真空烘箱适用热气循环系统烧水，室温透亮，环保节能；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘干箱应设防莫名无电可用保养的功能。启用人身安全；Mixer oven has suddenly loses power protection function. Run security;◆烘烤箱可配反复的散热控制系统，不耗损卧室新风量，才能减少卧室的压差大不动态平衡的隐患散热视觉效果优；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘烤箱可配气体压力全自动动态平衡性调接程序抑制房子和烘烤箱的气体压力不动态平衡性发生的体温过高段偏斜，灌装设备间洗烘间体温升中等职业全方位产品的大问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烤箱开设DOP测量端口(涉及静压、风速等级、灰尘微粒测量口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆恒温干燥箱冷去段可带线下灭菌处理技能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆真空烘箱网带可带高周波遍布CIP线下进行维护清洁设计；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可展开全八卦方位、多方面来髙压水擦洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆包装机用世界更最先进的设计概念，具有着绕城加速快，还有分瓶准确的，改换品种件简单方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开装袋机用到学习交流系列伺服电机的驱动器分开装袋丝杆拖动，装量小于；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆预包装机通过装量的整改简单在接触屏上变现；Mixer packer adopts the load adjustment directly on a touch screen;◆全自动灌装机机供选择配百级再循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆灌装机无瓶进行灌装，无瓶不添加塞实用功能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线通过PLC总管理、直流变频空调器、触控屏管理新技术，进行稳定性稳定。触控屏可彰显各单机手游的进行感觉下，各管理点的水位、标准气压、风压差、温等彰显，各旋钮感觉下和报警彰显，报警自我完善测试和报警数据分析及检测方法步骤。使整一个的生产的进程到自主化管理，联线都具有自我控制教育均衡发展安装，以确保的生产的教育均衡发展稳定。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.按照投资者的都要，还可供加装：According to the needs of customers, but also available for selection:◆西门子系统化、斯耐德、西门子、台达等公司操作系统化；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负压、水的温度及超音波波的强度、尘灰a粒子、风速等级在线播放检验、报警声音、收录、打印图片设计；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无茵要进行隔离器系统。ORABS, CRABS, aseptic isolator system.

技巧产品参数：/technical parameters

参数 model

生产加工工作能力production capacity

洗瓶适合率Washing bottle percent of pass

洗瓶损毁率Washing bottle breakage

杀菌热度sterilizing temperature

散装测量误差The repackaging of error

加塞合格证率Gasser percent of pass

空气中层流净化后的度Laminar air cleanliness

真空度抽速Vacuum pumping speed

电阻量 capacitance

24v电源power supply

总剩余电量Total transmission energy

自己的外观尺寸图boundary dimension

7-25ML国家行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
