借款用途与百科：/Purpose and introduction

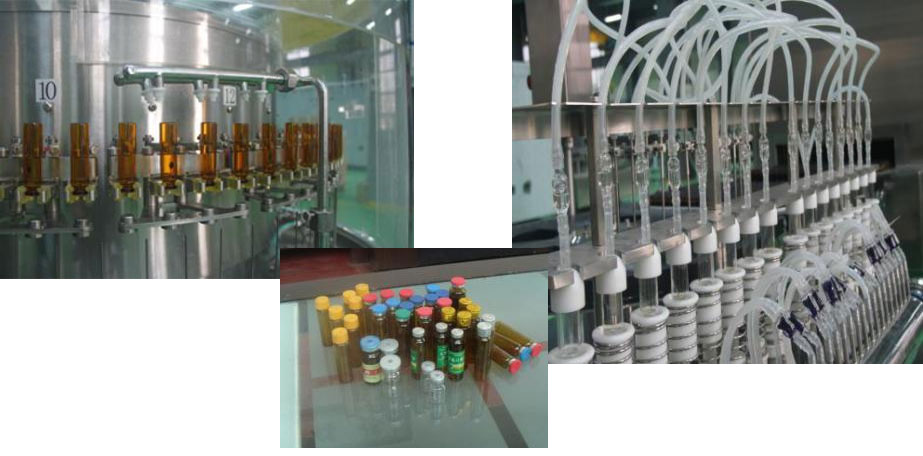

服用液洗烘灌轧对接性线由立柱式mri波洗瓶机、隧洞式热气 重复消毒方法烘烤箱、服用液装灌轧盖机等组合而成，时候于 5-30ml 等多种规 格服用液瓶的产量。可完整对非处方药产量中安瓿瓶淋水、mri波擦拭、冲水、充 气、烘干机消毒方法、加热、装灌、轧盖等工序方法步骤的对接性正常运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

共同点:/characteristic

◆洗瓶机利用机制手夹瓶，用于多規格的可乐瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用到水汽喷针往返侦测嵌入行为，擦洗特效好，得节能减排技术。并均有针架防跳动试验装置，挺高喷针嵌入空瓶的正确度，缩减断针干涉现象进行；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整个的水汽线路、喷针全自立错开，以防了交错式影响，契合GMP规范起来规范要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆前安装缓存数据块，有守护丝杆，缩减碎瓶角色Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶使用纵向原装进口同部带，接拨块推送口服方式液，启用安稳稳定In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆干燥箱所采用红外线热处理管，不锈钢圆管热处理管单层热处理体温更加均匀性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装灌轧盖机可选装配瓷器泵、冷库保温隔热板的表层泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装罐无瓶止灌，无瓶不轧盖的功能。Pieces filling without bottle filling, no bottle no rolling function.◆整线主要包括PLC总调节、变頻器、触感屏调节的技术，启动固定是真的吗。触感屏可展现信息各单机版的启动壮态，各调节点的通水压力、压力、风压差、气温等展现信息，各旋钮壮态和设备设备电脑故障展现信息，设备设备电脑故障自我完善判断和设备设备电脑故障具体分析及排除故障的方式。使整体分娩整个过程提高会全自动调节，联线极具三机自动化控制动平衡机系统，担保分娩平衡是真的吗。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.不同投资者的应该，还可供选用：According to the needs of customers, but also available for selection:◆欧姆龙、斯耐德、三菱数控系统性、台达等品牌标志的系统设计性；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压差、水溫及超超声波发生器波硬度、灰尘颗粒、风量免费在线的检测、报警功能、见证、word打印操作系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、没有细菌隔离开器平台。Mixer ORABS, CRABS, aseptic isolator system.

技艺基本参数：technical parameters

采用年纪Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线导致精度Filling accuracy(%)	≤ ± 2.5
装灌头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合理率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
