功能与概述/Brief Introduction：

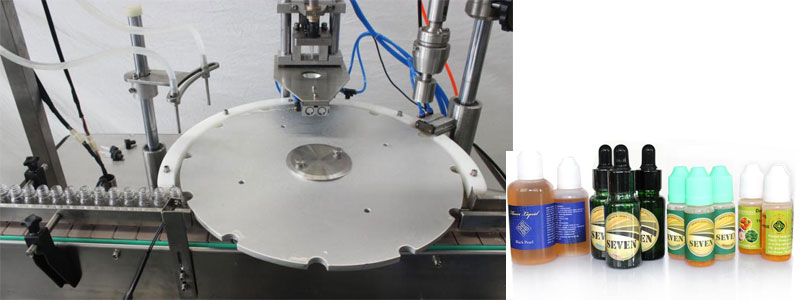

该设备适应用在于2-30ML所有材料的半圆扁形材料或夹丝玻璃罐的眼蓝药水罐装.该设备由高有效控制精度轴承组织度数组织保证度数等分盘准确追踪定位上塞上盖;t加流速轴承组织链传动链保证旋盖头的升降调节;恒扭力旋盖;消化吸收泵收费检验罐装;触感屏有效控制.无瓶不罐装,没有内塞,外盖.具准确追踪定位准确度,链传动链能保持稳定,养护盖子,收费检验准.的操作简便等显著优点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特质/Characteristic：

◆微我的电脑调节、装量正确、运行方面。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备电机转速可来无级变速调频变频调速。the mainframe running speed is stepless frequency conversion.◆制作量自动的一定量把控。the product quantity can be controlled. ◆各种故障率信息提示功效(如低压力。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自行暂停服务效果，对某一行列出现了间断无灌装线、无内塞现状可自行暂停服务。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术工艺运作/Main Technical Parameters：

适用于产品规格Filling Volume	2-30ml
种植意识Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min    70-100bottl𓆏es/min
装灌高精准度Filling Precision	≤±1%
电源开关 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
系统自动上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
额定功率 Power	2.0 kw
机设备毛重Weight	550 kg
外表面积Dimension	1800*1000*1500mm
