应用场景与间介/Brief Introduction：

这个机器选取唯一性三通管件分装阀，实用作水剂和膏霜类物品的分装，特点对高粘稠度原物料管理（如浓酱、朝天椒酱、番茄酱、种衣剂、微乳剂、浮动剂等）的使用效果特别显眼，且精确高。这个机器选取PLC可编序把握，搭配6屏幕尺寸触碰屏组队游戏界面机系统，方法自己式进瓶，自己式分装，自己式出瓶，电器设施主设备，气动弹簧元器件均选取国外产品品牌，为了保证了好品质的产品质量和长时间平稳的效果。本设施主设备结构设计容易，方法有利，是国内外完美的根据高粘稠度原物料管理的分安装施主设备。这个机器标准配置了以避免滴漏问题问题与金属拉丝机的分装闷头，为了保证分装成功后无滴漏问题问题，无金属拉丝机。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

亮点/Characteristic：

◆设定机设备——用三凌PLC设定机设备，装灌分子量任意调节。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆使用程序软件界面——69英寸彩屏手触式使用程序软件界面，客观容易、平安信得过Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆系统优化——排料有防漏滴保护装置，可只能根据原料特质兼具下潜分装系统。（此系统会常用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电气产品电子器件——均通过国际上高知名度产品品牌，确保仪器的平安可信、精确度性强；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆机械装备零组件——机子零组件均选用上等304不锈304不绣钢钢板网作,见谅需排斥原辅料都可以选用316L另收费用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆运算检则——实时路况运算，对事情出现举例子反映落实。Counting test, real-time, intuitive reflect the yield of work.◆罐装在线检测——无瓶不灌、瓶数不不灌Bottle filling test - no bottle no filling, not enough◆定期系统维护情况报告——远程服务器达到GMP标准要求，可高效拆迁、擦拭定期系统维护。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆对调要求——调换分装要求时，只需要简洁明了修整，便捷完成。Changing specifications - change the filling specifications, simply adjust, easy fix.◆安全标准搭配——搭配了安全标准框架图，使机器人的运行条件愈加洁净干净。（此安全标准搭配就可以选购）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

高技术基本参数/technical parameters：

灌装线头数The number of filling head	8头（供选择4、6、8、10、15个灌装设备头）8 head (optionalꦇ 4, 6, 8, 10, 12 filling head)

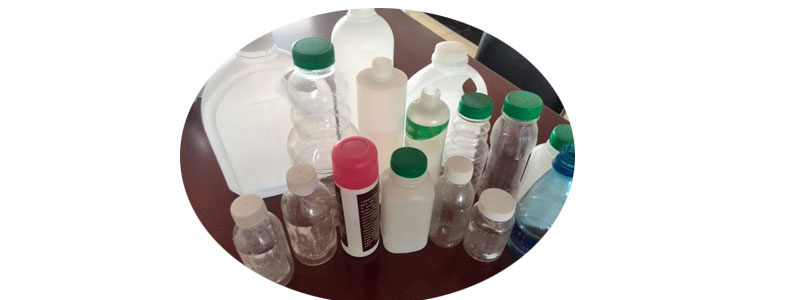

适合瓶径 Applicable bottles Drive	Ф33-Ф100 mm
收费精度等级measure precision	±1%
罐装存储容量Canned capacity	150-1000ml
生产加工效果Production Capacity	2400-4000瓶/h2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
