应用与筒介/Brief introduction：

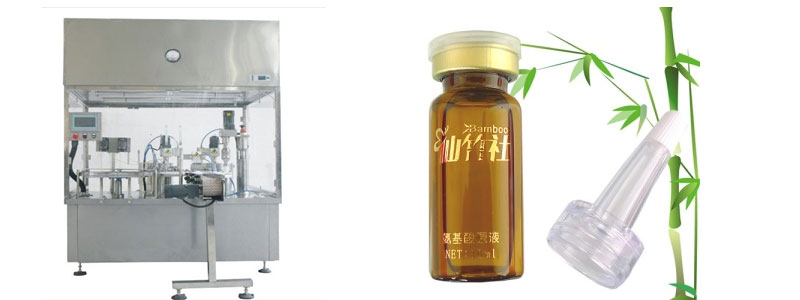

远程服务器是在引进外资和吸收率日本队发达技术工艺的地基上，应该由我公司自主性新产品研发的有款职业 重要性西林瓶的分装、上塞、旋（轧）盖机。远程服务器通过日本队全进口清关高定位的精密度全封式凸轮轴量程工位器具器，定位的精密较高，适用的靠得住，适用的耐用度长。该量程器节构轻松，长期性的适用的就不需要保修。超声波焊接机一般使用来种种小残留量介质的装灌、压塞及旋（轧）盖，如单方精油、打瘦脸针剂等。范围广用来食品厂、医药集团、纸业业内及研发领域行业。这个机器既可单人生育，又可与洗瓶机、皮肤干燥机等的设备主成协作生育线。截然合乎的国家GMP规定标准。超声波焊接机也可以依照用户规定标准升级成电力电气配置单。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

特别/Characteristic:：

◆人机对战工具栏人设、进行精确性以便于、PLC调节，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆调频掌握、产量网络速度指定调高、自动的数值。Frequency control, the production rate be adjusted automatically count  ◆自动的停电基本功能，无瓶不灌装线。No bottle no filling.◆圆板地位式灌装线，稳定性靠得住。Disc positioning filling, stable and reliable.◆高导致精度凸轮轴精度等级计调控，位置定位*。High-precision cam meter control, precise positioning.◆进行SUS304及316L不透钢生产，全符合标准GMP规范。SUS304 and 316L stainless steel, full compliance with GMP requirements.

能力产品参数/ technical parameters：

装量区间Filling volume	5-50ml
装量出现偏差的原因loading error	≤ ±1%
旋（轧）盖通过率 Rotation (rolling) Cover pass rate:	≥99%
出产功能Production capacity	30-60瓶/分 钟 &nb🍬sp;低速档 70-100瓶/分 钟     飞速 3ꦏ0-60 bottles / min  70-100 bottles / minute (h🐻igh speed)
压塞率Tamponade rate	≥99%
电压 Power	380V/50Hz
额定功率Power	2.0 kw
工具重量Net weight	600 kg
外表尺寸 Dimension	2000*1000*1500mm
